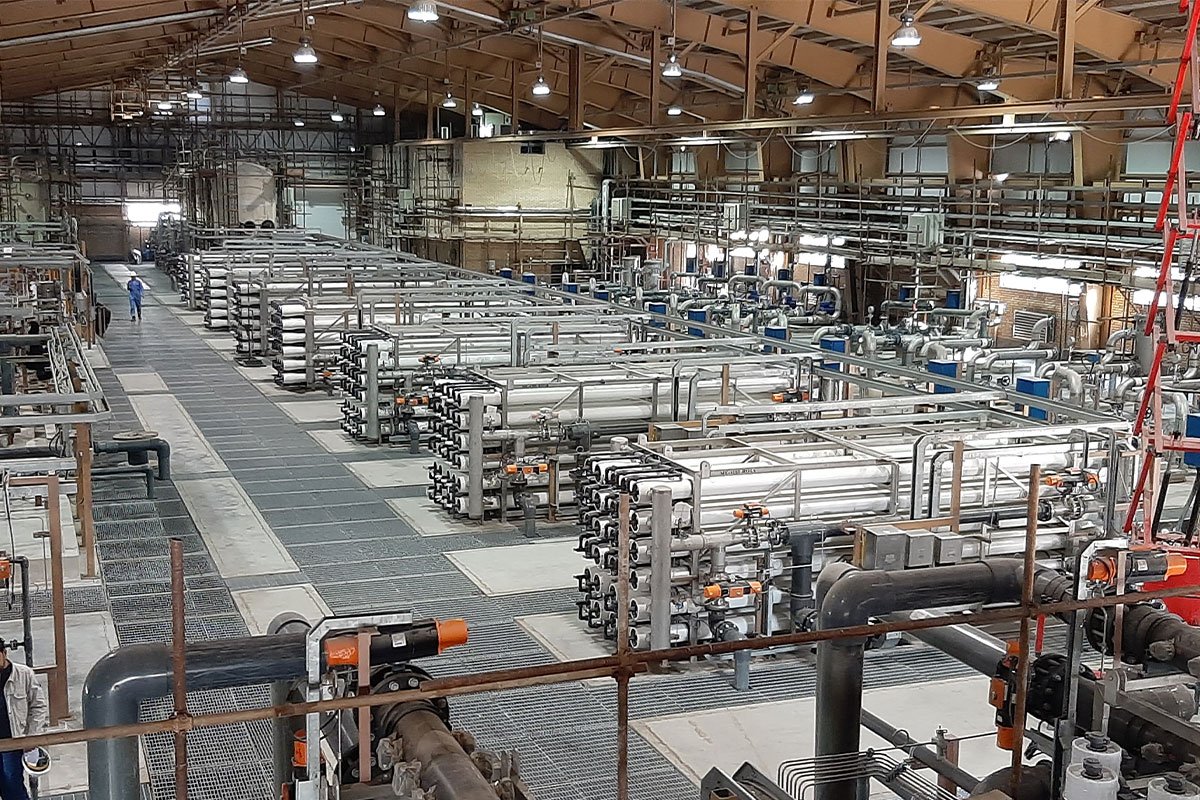

The Esfahan Oil Refinery Demineralization & Polishing Water Treatment Plant
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
1 The Facility
Isfahan Oil Refinery has been operating in the field of crude oil refining and petroleum products production and downstream feedstuffs since 1979 and now produces about 23% of the country’s petroleum products.
The company is located in the northwest of Isfahan with a total area of 340 hectares.
2 General overview and process description
Our treatment process for the Isfahan Oil Refinery Utility & Off-Site Project is planned to treat Raw water with an average capacity of 17000 m3/d. The raw water is collected from the upstream RO Package and Clarifier plant. Feed specification is shown below table:
Feed Specification:
Isfahan DM Package Feed Specification | ||||
Stream | Flow (m3/hr) | TDS (ppm) | Density (kg/m3) | Flow (Ton/hr) |
Raw Water Stream | ~700 | ~787 | ~1000 | ~700 |
The Demineralization (DM) Water Treatment Plant consists of below main units:
- Self-cleaning filter; The flow enters self-cleaning filters (100 microns) to remove of suspended solids and other elements that can cause serious problems for other units and devices. Then Filtered water goes to UF trains.
- Ultrafiltration process; UF physically separates solids from liquid streams based on the principle of size-exclusion. In this project UF system consists of 4 UF trains and each train has 40 modules of dead-end membranes.
- Reverse osmosis process; To produce permeate water with TDS less than 0.5 mg/L, first the flow is sent to RO1 (recovery 75%) and the produced permeate is sent to RO2 (recovery 89%). The concentrate of RO2 is sent to the storage tank after the UF unit because of its low TDS compared to the TDS of raw water. The concentrate of RO1 is sent to RO3 to produce permeate water with TDS less than 100 mg/L with recovery of about 80%. Therefore, it is predicted that the total recovery of reverse osmosis systems will be more than 90%.
- The standard chunk of Ipsum used since the 1500s
- Cicero are also reproduced in their exact original form
- English versions from the 1914 translation by H. Rackham
- Literature from 45 BC, making it over 2000 years old
- This book is a treatise on the theory of ethics very popular
- Cicero are also reproduced in their exact original form
- Client : Tyler Inc.
- Location : California City FL 23059
- Area : 1.690 m2
- Finished On : September 17, 2014
- Value : $789.000,00
- Remarks : The project was completed under the budget, with the savings returned to the owner.
RO Discharge Specification:
Isfahan RO Discharge Specification | |||
Stream | TDS (ppm) | Density (kg/m3) | Flow (m3/hr) |
RO Permeate Water | ~0.5 | ~1000 | ~500 |
Mixed Bed process;
For removing the residual cations and anions and producing DM water with 0.2 μS/cm conductivity, the water enters the Mixed Bed Filter (2+1) which contains two types of resin, strong cation acid resin and strong base anion resins. Each mixed Bed Filter capacirty is 250 m3/h and the maximum conductivity of water which should be produced by mixed bed is 0.2μS/cm.
Demin Discharge Specification | |||
Stream | EC (μS/cm) | Density (kg/m3) | Flow(m3/hr) |
Demin Water | < 0.2 | ~1000 | ~500 |
3 Required Utility
- Electricity
- Instrument air
4 Schematic Block Diagram of DM Package is shown as below:
